pixii powershaper

Energy Storage upto 50kW

Request Quote

Get the power you need without upgrading old grid infrastructure.

With a growing energy demand and rising cost, you need to optimize your energy consumption and get more out of your solar installation with a battery energy storage system that is quick to deploy and easy to scale.

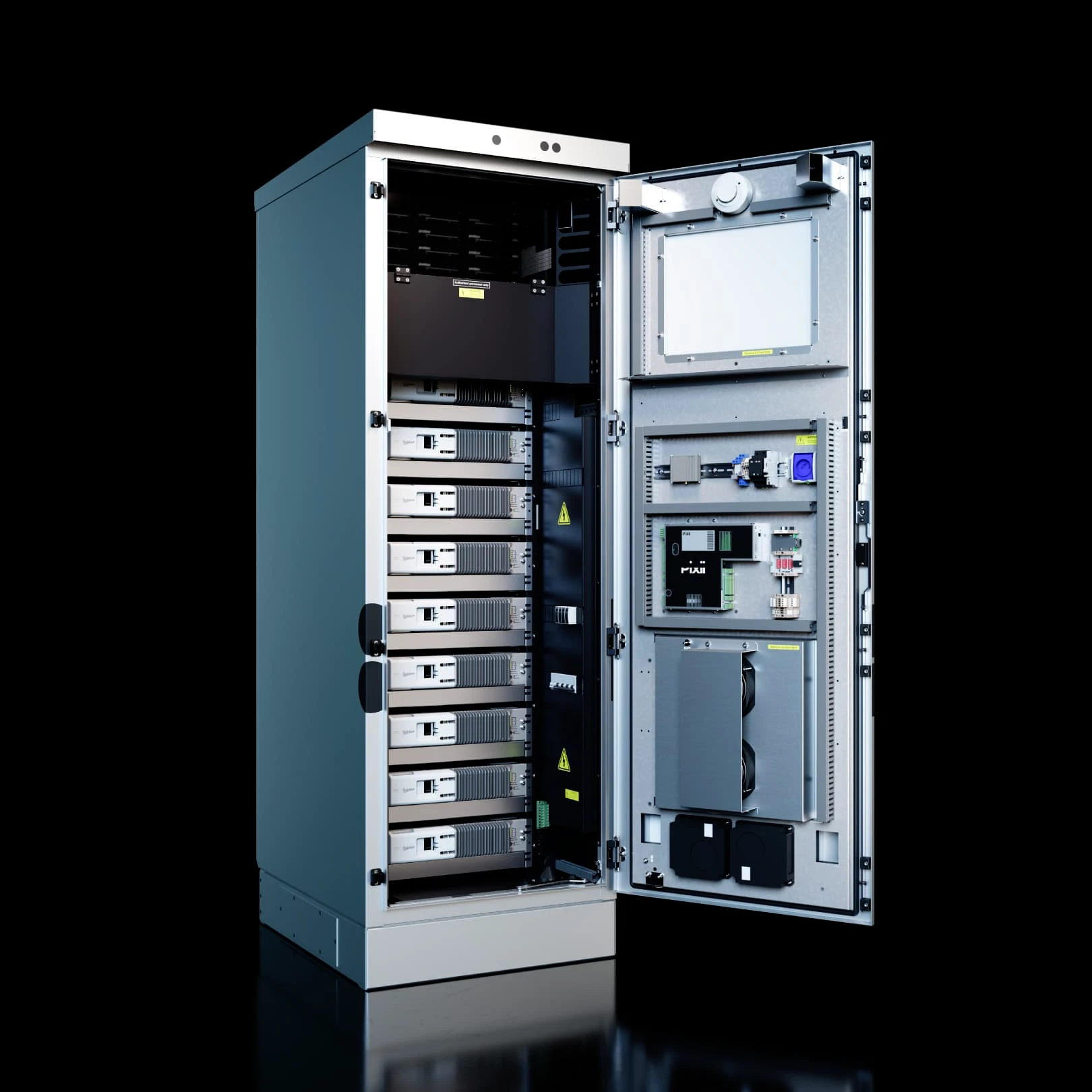

The Pixii PowerShaper2 is a modular battery energy storage system that scales to your needs. It comes with smart functionality like time shift and peak shaving to reduce your energy cost, and it's fully integrated, enabling you to get the most out of your new or existing solar panels. Now you can take part in the flexibility market and open new revenue streams.

It comes with The Pixii Gateway for remote monitoring and control, with cloud services giving you the complete overview of all your sites, including performance stats, historical data and alarms. And trough MQTT and Modbus protocols you will get the flexibility you need.

Key Features
Specifications
Functions
  • Modular and scalable
  • For applications 10kW to 1 MW
  • Compact energy storage
  • Fast response (charge to discharge)
  • Integrated & battery inverter solution
  • Wide range of functions
  • Galvanically isolated AC to DC
  • 48V battery voltage for ease of service
General Data
Max Power (bi-directional)
Up to 50 kW
Nominal AC Voltage
230/400VAC
Frequency
50 or 60Hz
Max AC Current (50kW)
80A
Nominal DC Voltage
48VDC
Max DC current (50kW)
1125A
Communications Protocols
M-bus, Modbus RTU, TCP/IP Ethernet, 4G Wi-Fi
Maximum Operating Temperature
45°C
Minimum Operating Temperature
-20°C
Dimensions (W x D x H)
706 x 895 x 2120 mm
Weight (fully equipped)
600-800 kg
Cabinet Protetion Class
IP 55
Color
RAL7035
Environmental Management
Fan Cooled (Aircon Optional)
Application Standards
Safety
IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 62040-1, IEC/EN 62477, (Batteries) IEC 62619, IEC 62368, UN38.3
Grid
AS/NZS 4777-2, 50549-1,TF 3.3.3 B1, EREC G99 (others pending)
EMC
IEC/EN 61000-6-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4
Environment
ETSI EN 300 019:2-1 (Class 1.2), ETSI EN 300 019:2-2 (Class 2.3), ETSI EN 300 019:2-3 (Class 3.2)

Arbitrage

Support loads from battery when electricity rates are high, and charge battery when electricity rates are low.

PV Self Consumption

Get the most out of your solar investment and reduce your dependency on the grid through smart power management, enabling you to re-direct excess power generation to batteries for later use during peak hours.

Voltage Support

Monitor and maintain ideal line voltage in remote locations at low cost, by using our power management and storage solution as a buffer, enabling you to inject and absorb active/reactive power to and from the grid.

Phase Balancing

Balance your three-phase load to provide utilization of your upstream distribution network, by feeding power from phases with low load – to phases with high load and thereby stabilizing the phase voltages.

Reactive Power Compensation

Reduce the operational cost of your network by adding smart energy storage, allowing you to consume or generate reactive power, to improve the performance of your network and minimize energy losses.

Frequency Support

Provide first-response frequency support and stabilize the grid. Our power management and storage solution will contribute to even out the deviation from nominal grid frequency by adjusting active power to and from the grid.

Related Products

Pixii powerbase
Pixii multicabinet

Building Blocks

Pixiibox

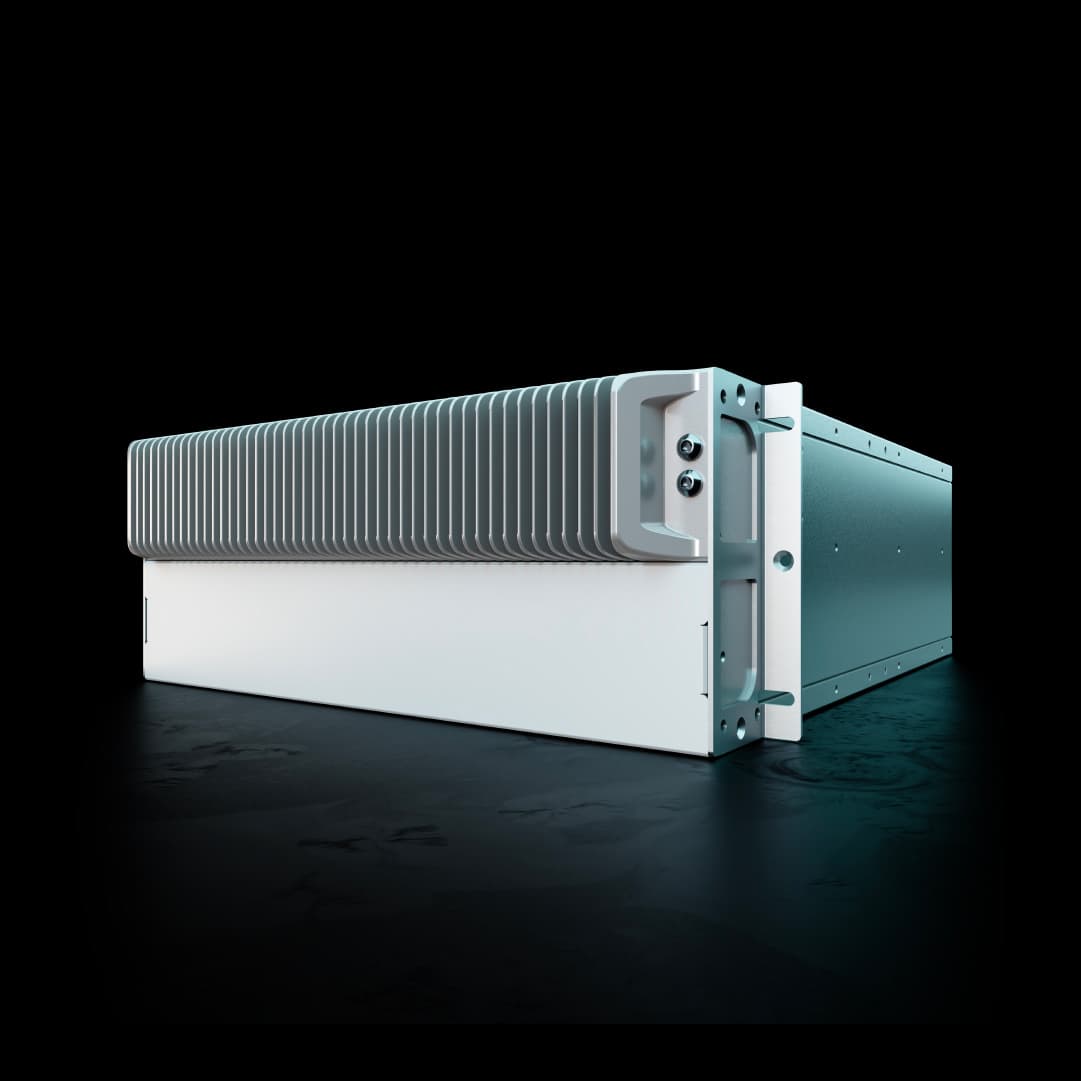

batteries
How Does it Work?

With cutting-edge technology, the Pixii modular energy storage solution gives you a wide range of functions, allowing you to unleash your growth potential.

Reduce monthly demand charges by limiting peak power consumption
Unprecedented Modularity & Scalability

Pixii's modular approach allows our solution to be tailored to your needs, enabling quick and easy deployment so that you can scale rapidly, whilst keeping your CAPEX to a minimum.
