Pixii Powerbase

Preconfigured Energy Storage upto 600KW

Request Quote

With the electrification of society comes an increase in power demand and a push for more renewables. So you need a flexible battery energy storage system that is quick to deploy and easy to scale, with smart services, unlocking the flexibility market and creating new revenue streams.

The Power Base 600 is a robust energy storage system on a steel frame with the footprint of a standard ISO 20-foot container. It comes pre-wired and pre-configured to reduce installation cost and delivery time, and can hold up to 12 Pixii PowerShaper2 cabinets, with a maximum power capacity of 600kW

It allows for a range of energy saving services, like Time Shift and Peak Shaving, and comes fully integrated, enabling you to get the most out of your new or existing solar panels. And with grid support services, like Fast Frequency Support you can take part in the energy flexibility markets and open new revenue streams.

The system can be configured for a range of battery models and chemistries, to match the requirements of your application. The cabinets can be fitted with air conditioning or fan cooling for hot climates.The PowerBase 600 is quick to deploy and can be placed on a leveled ground, or on eight solid resting points, significantly reducing on-site preparations, civil work and installation time. PowerBase is easy to relocate at a later need.

Battery Type
Max No:
Max kW*
Max kWh
LFP 4,8kWh
120
540kW
576kWh
NMC 12,9kWh
96
480kW
1,2MWh
NMC 15,2kWh
96
480kW
1,44MWh
LFP 5kWh
120
600kW
600kWh

*Nominal Capacity, actual capacity depends on the application and use-case

Key Features
Specifications
Functions
  • Modular and scalable
  • For applications 10kW to 1 MW
  • Compact energy storage
  • Fast response (charge to discharge)
  • Integrated & battery inverter solution
  • Wide range of functions
  • Galvanically isolated AC to DC
  • 48V battery voltage for ease of service
General Data
Max Power (bi-directional)
Up to 600 kW
Nominal AC Voltage
230/400VAC
Frequency
50 or 60Hz
Max AC Current (50kW)
4 x 240A
Nominal DC Voltage
48VDC
Steel S235
C5-M 320 μm Painting, RAL7035
Maximum Operating Temperature
45 °C
Minimum Operating Temperature
-20°C
Dimensions (w x d x h)
6,058m x 2,438m x 2,230m
Weight (fully equipped)
10,000-12,000 kg
Cabinet Protetion Class
IP 55
Non-slip Aluminum Floor Cover
ISO Twistlock Corner Fittings
Application Standards
Safety
IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 62040-1, IEC/EN 62477, (Batteries) IEC 62619, IEC 62368, UN38.3
Grid
AS/NZS 4777-2, 50549-1,TF 3.3.3 B1, EREC G99 (others pending)
EMC
IEC/EN 61000-6-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4
Environment
ETSI EN 300 019:2-1 (Class 1.2), ETSI EN 300 019:2-2 (Class 2.3), ETSI EN 300 019:2-3 (Class 3.2)

Voltage support

Monitor and maintain ideal line voltage in remote locations at low cost, by using our power management and storage solution as a buffer, enabling you to inject and absorb active/reactive power to and from the grid.

Peak shaving

Reduce your demand charges and save cost by shifting your power dependency from grid to battery, shaving the peaks of your power consumption. It also allows you to boost available power without having to upgrade your grid connection.

Arbitrage

Support loads from battery when electricity rates are high, and charge battery when electricity rates are low.

Related Products

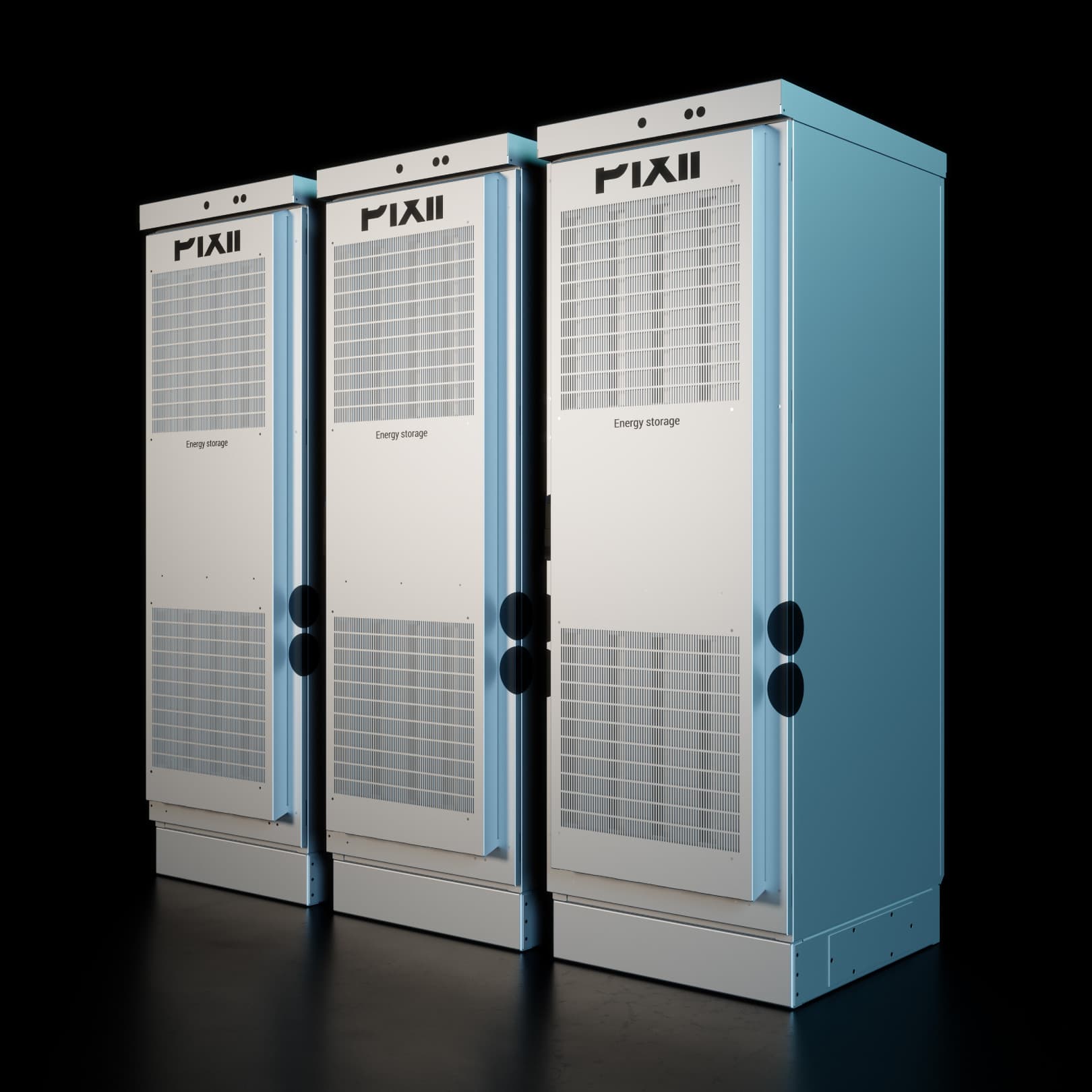

Pixii multicabinet
Pixii powerbase

Building Blocks

Pixiibox
batteries
How Does it Work?

With cutting-edge technology, the Pixii modular energy storage solution gives you a wide range of functions, allowing you to unleash your growth potential.

Reduce monthly demand charges by limiting peak power consumption
Unprecedented Modularity & Scalability

Pixii's modular approach allows our solution to be tailored to your needs, enabling quick and easy deployment so that you can scale rapidly, whilst keeping your CAPEX to a minimum.
